NordnetBox Emotion - Manage a port opening

Identifiant de l'article : 1517 Dernière mise à jour : 10/12/2024

This function is reserved for Nordnet customers who own a NordnetBox Emotion

For a server or programme to work properly (camera, FTP, VPN, games or other), it is sometimes necessary to open one or more ports on your router to make it accessible from the outside. This article guides you through adding or removing a port opening on your NordnetBox or router via your Customer Area or the box’s graphical interface, depending on the model.

Points covered

Display the list of port openings
Add a port opening
Remove a port opening

Access NordnetBox management from your Customer Area

To access the settings of your NordnetBox via the Customer Area, you must use your Nordnet connection. Make sure it is switched on and connected to your computer system.

To access your Customer Area, click the following link: https: //client.nordnet.com
Next, enter your Nordnet Customer Area username and password in the appropriate fields, and confirm.
Your username was given to you by Nordnet when you subscribed, in your Welcome email (or letter).

If you have forgotten your username and/or password, click the Forgot your password? link.

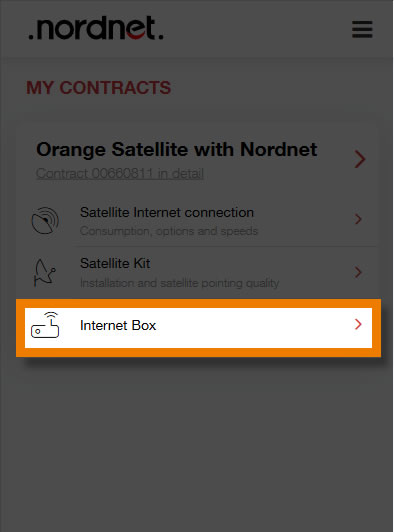

From the MY CONTRACTS section, click the Internet Box submenu.

Configure port openings

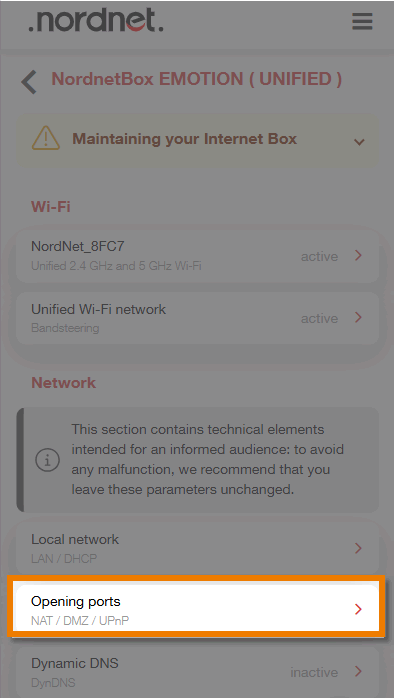

Click Opening ports.

View the list of active port openings

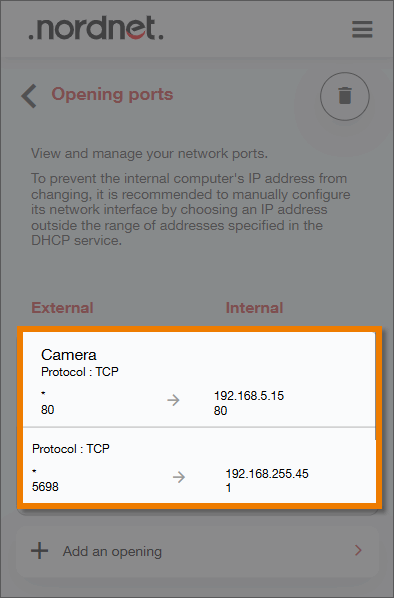

Click here for the list of port openings.

Add a port opening

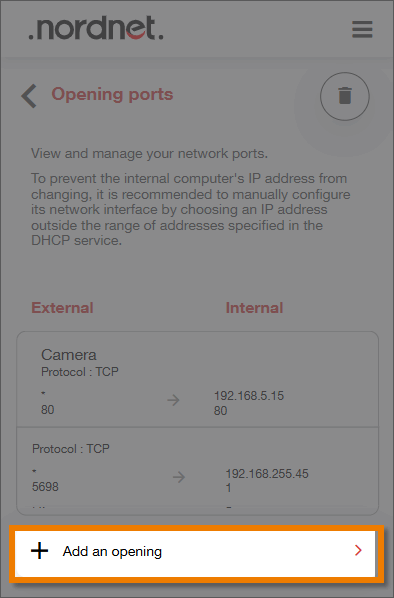

Click Add an opening.

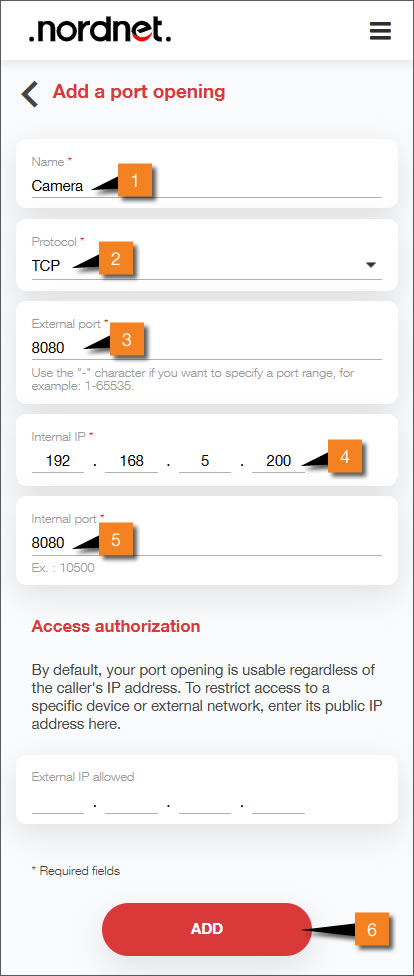

Fill in the various fields as follows:

In the “Name” 1 field, enter the name of the application/hardware that requires a port to be opened.
In the “External port” 2 field, enter the port number via which you want to access your service.
In the “Protocol” field 3, select the protocol(s) that use this TCP / UDP / TCP + UDP service.
In the “Internal IP” field 4, enter the IP address of the machine where the application is installed.
In the “Internal port” field 5, enter the port number used by the application (its value is between 0 and 65535).
In the “External IP” field (6), leave blank, unless you want only the remote machine to listen on this port. In this case, enter the IP address of the remote machine.

To save your changes, click the ADD button, then SAVE.

Remove a port opening

To remove a port opening, return to the list of active port openings and click the delete icon, symbolised by a dustbin.

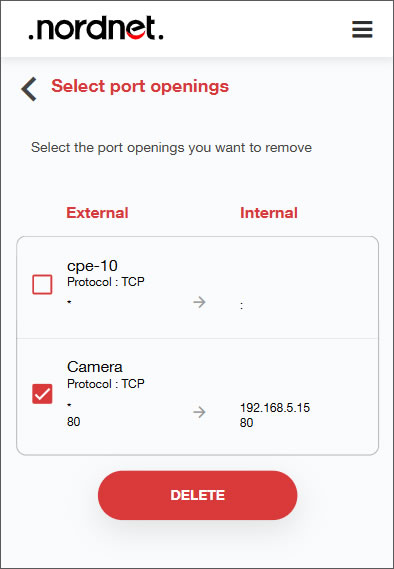

Select port opening 1 then click DELETE 2 and the Save button in the window that follows.
